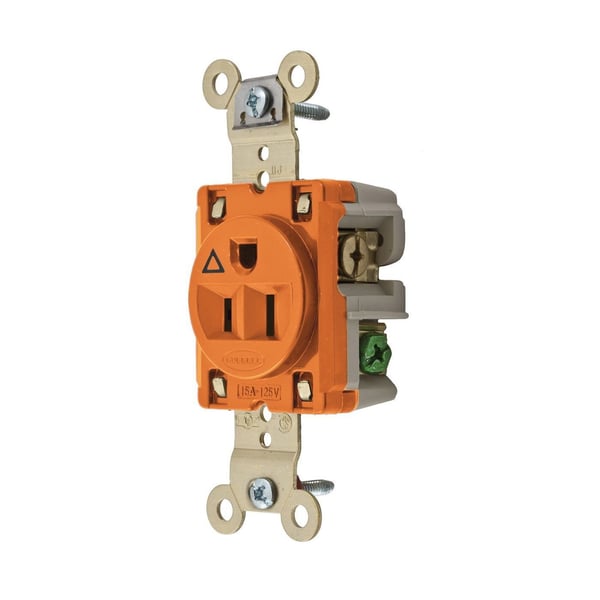

Wiring Device-Kellems SpikeShield® IG5261 Extra Heavy Duty Isolated Ground Single Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Orange
Wiring Device-Kellems SpikeShield® IG5261 Extra Heavy Duty Isolated Ground Single Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Orange
SKU: HWDIG5261
Manufacturer Part Number: IG5261
UPC: 783585756493
Short Description
Features
- Dimensionally stable, reinforced thermoplastic polyester provides impact strength in addition to heat and flame resistance
- Impact resistant nylon finder groove face
- Wraparound, locked on brass mounting strap provides additional support strength for receptacle assembly
- Automatic self-grounding clip assures ground continuity between mounting strap and metal wall box
- IG triangle on the face of the receptacle clearly indicates isolated ground device
- Amperage and voltage clearly indicated
- Back and side wiring capability provides easy installation with stranded or solid wire
- Green grounding screw connected directly to the grounding contacts
- Insulation barrier construction is first patented by Hubbell® isolates ground contacts from the mounting strap
- Square head, 10-thread bronze center rivet won't rotate, reduces stripping and resists corrosion
- Patented bypass contact design
Specification
| Grade | Commercial/Industrial/Specification |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back and Side Wired/Screw |
| Voltage Rating | 125 VAC |
| Amperage Rating | 15 A |
| Dimensions | 3.28 x 1.63 x 1.19 in |
| Color | Orange |
| Horsepower | 1/2 hp |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, C22.2 No. 42, Federal Specification WC596, NEMA WD1, WD5, UL 498 File No. E2186 |
| Type | Extra Heavy Duty Isolated Ground Single Standard |
