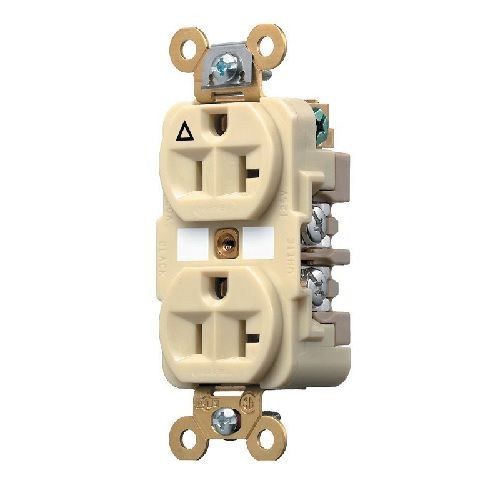

Wiring Device-Kellems HBL® IG5362I Extra Heavy Duty Duplex Isolated Ground Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Wiring Device-Kellems HBL® IG5362I Extra Heavy Duty Duplex Isolated Ground Standard Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: HWDIG5362I
Manufacturer Part Number: IG5362I
UPC: 783585876887
Features
- 1-piece brass ground strap
- Exclusive bypass contact design for greater contact force and reduced heat buildup
- Barbed assembly arms reduce possibility of face/base separation
- Deep face design
- Finder groove face
- Slender compact design
- Triangle marking on face indicates isolated ground
Specification
| Grade | Industrial |
|---|---|
| Material | Composite/Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | HWDIG5362I |
| Color | Ivory |
| Dimensions | 3.28 x 1.33 x 1.05 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back/Side Wired Screw |
| Type | Extra Heavy Duty Duplex Isolated Ground Standard Traditional |
| Voltage Rating | 125 VAC |
| Standard & Approvals | ARRA, Buy American Act Compliant, UL 498 File No. E2186, CSA C22.2 No. 42 File 285, Federal Specification WC596, UL 94-V-0, UL 94-V-2 Flammability Rating, NEMA WD1, WD5, WD6 |
| Horsepower | 1 hp |
