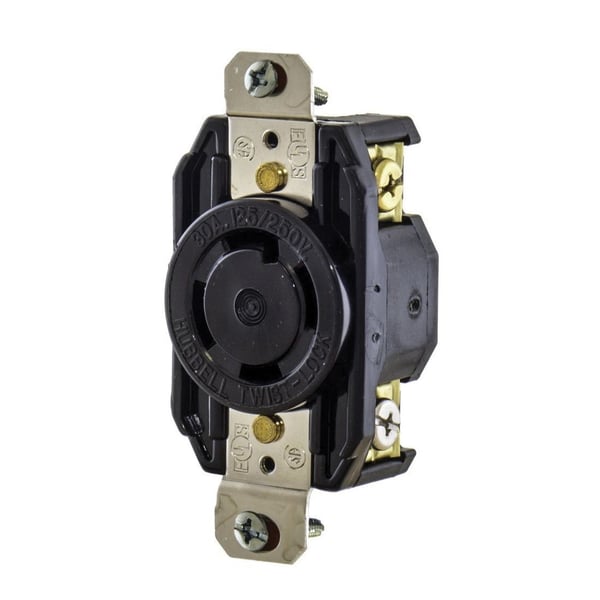

Wiring Device-Kellems Select Spec™ Twist-Lock® L1430R Heavy Duty Grounding Standard Single Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Wiring Device-Kellems Select Spec™ Twist-Lock® L1430R Heavy Duty Grounding Standard Single Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
SKU: HWDL1430R
Manufacturer Part Number: L1430R
UPC: 783585840642
Specification
| Grade | Industrial |
|---|---|
| Material | Composite/Thermoplastic |
| NEMA Rating | NEMA L14-30R |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Color | Black |
| Temperature Rating | -40 to 85 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125/250 VAC |
| Standard & Approvals | UL 498, CSA Certified, UL 94-V-2 Flammability Rating, NEMA WD1, WD5, RoHS, ARRA, Buy American Act Compliant |
| Application | Industrial, MRO, OEM, Plant, Floor Equipment Wiring, Ceiling Power, Drops, Extension Cords, Portable Equipment, Construction, Dry Locations and Indoor Applications |
| Type | Heavy Duty Grounding Standard Single |
| Dimensions | 1.703 in W x 1.312 in D |
| Catalog ID | HWDL1430R |
