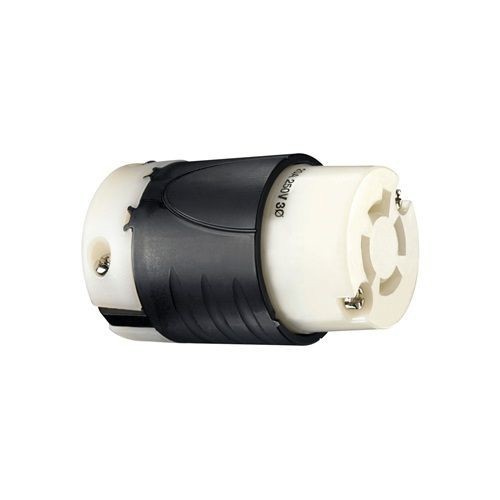

Wiring Device-Kellems L1520C Locking Connector, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White

Selected L1520CWiring Device-Kellems L1520C Locking Connector, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
L1520CWiring Device-Kellems L1520C Locking Connector, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White

Short Description

Hubbell-Pro locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.

Features

  • Supertough nylon body
  • Visible NEMA ratings
  • Captive assembly screws
  • Impact modified nylon blade/contact holder
  • High performance copper alloy contacts/blade
  • Withstands 3500 V per UL498 dielectric voltage
  • 600 VAC, 250 VDC maximum working voltage
  • Certified for current interrupting at full rated current
  • Minimum 4.8 times rated current for 100 cycles overload
  • Terminals identified in accordance with UL 498
  • 18 to 8 AWG flexible cord terminal accommodation
  • Ratings and NEMA identification are permanently marked on device

Specification

Grade
Specification
Material
Nylon
NEMA Rating
NEMA L15-20R
Number Of Poles
3
Number of Wires
4
Temperature Rating
-40 to 75 deg C
Terminal Type
Screw
Voltage Rating
250 VAC
Standard & Approvals
UL Listed, CSA Certified
Amperage Rating
20 A
Dimensions
1.88 in ID x 2.13 in OD
Color
Black/White
Cord Diameter
0.625 to 1.05 in
