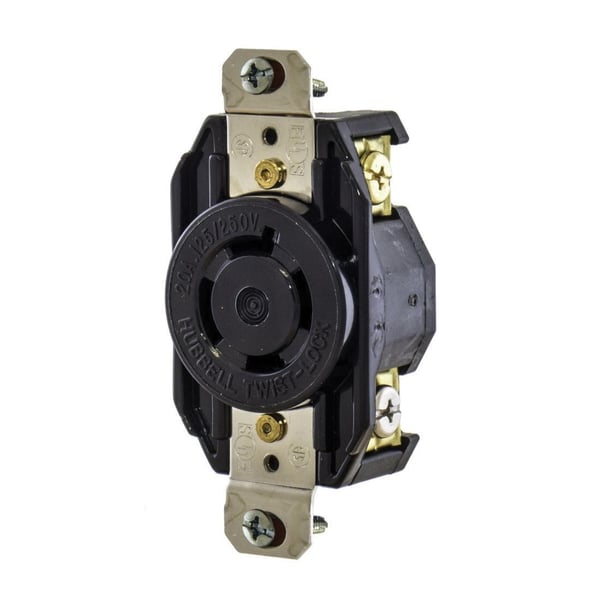

Wiring Device-Kellems Twist-Lock® L2120R Female Heavy Duty Grounding Single Standard Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
Wiring Device-Kellems Twist-Lock® L2120R Female Heavy Duty Grounding Single Standard Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Black
SKU: HWDL2120R
Manufacturer Part Number: L2120R
UPC: 783585192741
Specification
| Grade | Industrial |
|---|---|
| Material | Composite/Thermoplastic |
| NEMA Rating | NEMA L21-20R |
| Number Of Poles | 4 |
| Number of Wires | 5 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | HWDL2120R |
| Color | Black |
| Dimensions | 1.703 in W x 1.234 in D |
| Temperature Rating | -40 to 85 deg C |
| Terminal Type | Screw |
| Type | Female Heavy Duty Grounding Single Standard |
| Voltage Rating | 120/208 VAC |
| Application | Industrial, MRO, OEM, Plant, Floor Equipment Wiring, Ceiling Power, Drops, Extension Cords, Portable Equipment, Construction, Dry Locations and Indoor Applications |
| Standard & Approvals | UL 498, CSA Certified, NEMA WD1, WD5, ARRA, Buy American Act Compliant |
