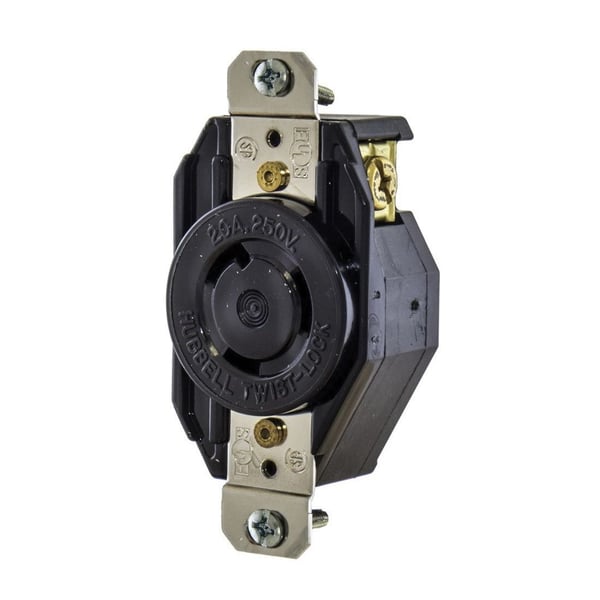

Wiring Device-Kellems Select Spec™ Twist-Lock® L620R Heavy Duty Grounding Standard Single Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Black
Wiring Device-Kellems Select Spec™ Twist-Lock® L620R Heavy Duty Grounding Standard Single Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Black
SKU: HWDL620R
Manufacturer Part Number: L620R
UPC: 783585835785
Specification
| Grade | Industrial |
|---|---|
| Material | Composite/Thermoplastic |
| NEMA Rating | NEMA L6-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 85 deg C |
| Terminal Type | Screw |
| Type | Heavy Duty Grounding Standard Single |
| Voltage Rating | 250 VAC |
| Application | Industrial, MRO, OEM, Plant, Floor Equipment Wiring, Ceiling Power, Drops, Extension Cords, Portable Equipment, Construction, Dry Locations and Indoor Applications |
| Standard & Approvals | UL 498, CSA Certified, UL 94-V-2 Flammability Rating, NEMA WD1, WD5, RoHS, ARRA, Buy American Act Compliant |
| Amperage Rating | 20 A |
| Dimensions | 1.703 in W x 1.234 in D |
| Color | Black |
