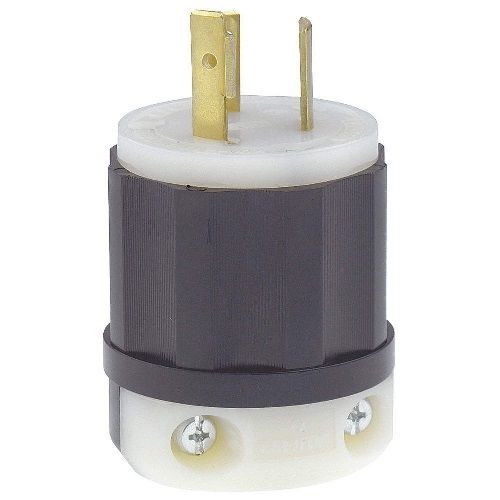

Wiring Device-Kellems Selectspec™ L720P Male Locking Plug, 277 VAC, 20 A, 2 Poles, 3 Wires, Black/White

Selected L720PWiring Device-Kellems Selectspec™ L720P Male Locking Plug, 277 VAC, 20 A, 2 Poles, 3 Wires, Black/White
L720PWiring Device-Kellems Selectspec™ L720P Male Locking Plug, 277 VAC, 20 A, 2 Poles, 3 Wires, Black/White

Short Description

Hubbell-Pro locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.

Features

  • Visible NEMA ratings
  • Captive assembly screws
  • Super tough nylon body
  • Impact modified nylon blade/contact holder
  • Brass contacts/blade
  • Withstands 3500 V per UL498 dielectric voltage
  • 600 VAC or 250 VDC maximum working voltage
  • Certified for current interrupting at full rated current
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
  • Minimum 4.8 times rated current for 100 cycles overload
  • Terminals identified in accordance with UL 498 (Brass, White, Green)
  • 18 to 8 AWG flexible cord
  • Ratings and NEMA identification are permanently marked on device

Specification

Grade
Industrial/Commercial
Material
Nylon
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Terminal Type
Pressure Screw
Voltage Rating
277 VAC
Standard & Approvals
UL Listed, CSA Certified
Amperage Rating
20 A
Color
Black/White
Type
Male
NEMA Rating
NEMA L7-20P
