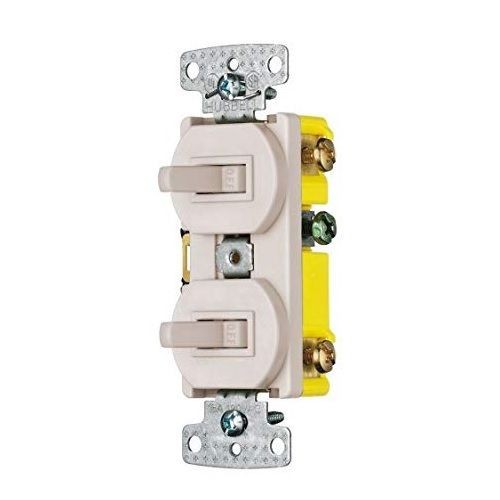

Wiring Device-Kellems homeSELECT™ Traditional 2-Position Combination Toggle Switch, 15 A at 120 VAC, 1 Poles
Wiring Device-Kellems homeSELECT™ Traditional 2-Position Combination Toggle Switch, 15 A at 120 VAC, 1 Poles
SKU: HWSRC101LA
Manufacturer Part Number: RC101LA
UPC: 883778119064
Documents
Features
- Mini-toggles provide for multiple switches in a compact single gang
- Maximize control while maintaining function and appearance
- Low profile, less than 1 in depth
- Self-grounding feature is standard
- Combination devices provide compact switches in a single gang opening
- Smooth toggle action
- Multiple drive slot/Phillips/Robertson head screws
- Hi-visibility yellow base for easy installation
- Elongated strap with continuous plaster ears
- Two 1-pole switch
- Side wired connectivity
- Snap switch action
- Toggle actuator
- Standard display size
- Brass rocker contacts and terminal, zinc plated steel bridge, center fasteners and mounting screws, plastic base, cover, toggle, spring housing and washers
- Stainless steel grounding spring, silver switch contact, steel spring
- -20 to 60 deg C operating temperature without impact
- 1800 W power
Specification
| Mounting | Threaded |
|---|---|
| Number Of Poles | 1 |
| Operating Cycles | 30000 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HWSRC101LA |
| Color | Light Almond |
| Electrical Rating | 15 A at 120 VAC |
| Environmental Conditions | UL V0-Flammability/Indoor Dry Unless Protected by Additional Means |
| Series | Traditional |
| Size | 1.32 in W x 1.53 in D x 4.2 in H |
| Type | 2-Position |
| Application | For residential applications |
| Standard & Approvals | CSA Certified, UL Listed |
