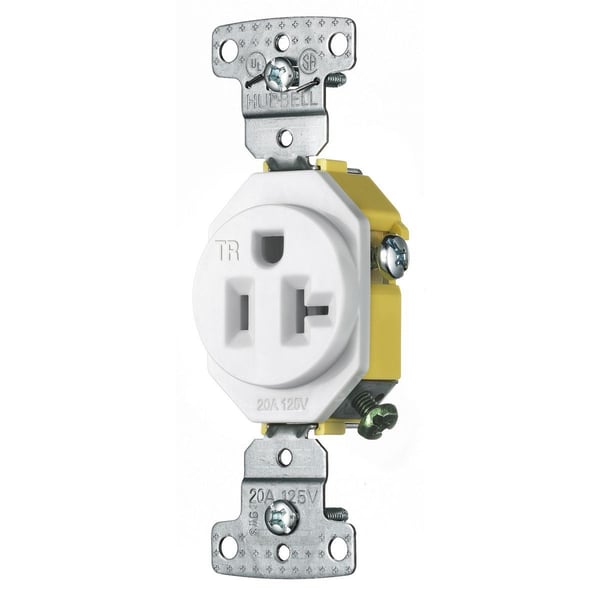

Wiring Device-Kellems tradeSELECT® RR201WTR 1-Phase Single Self-Grounding Standard Tamper Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Wiring Device-Kellems tradeSELECT® RR201WTR 1-Phase Single Self-Grounding Standard Tamper Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU: HWSRR201WTR
Manufacturer Part Number: RR201WTR
UPC: 883778302008
Features
- Smooth indented face appearance
- Multiple drive Slot/Phillips®/Robertson head screws
- Tough thermoplastic ultrasonically welded cover and base
Specification
| Temperature Rating | -20 to 60 deg C |
|---|---|
| Terminal Type | Side Wire |
| Type | 1-Phase Single Self-Grounding Standard Tamper Resistant Screw Mount |
| Voltage Rating | 125 VAC |
| Standard & Approvals | RoHS Compliant, UL 498, CSA Certified, NEMA WD1/WD5 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | www.youtube.com/v/1mlVS-g5fSg |
| Amperage Rating | 20 A |
| Catalog ID | HWSRR201WTR |
| Color | White |
| Dimensions | 4.2 in L x 1.38 in W x 1.01 in H |
| Grade | Residential |
| Material | Thermoplastic |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
