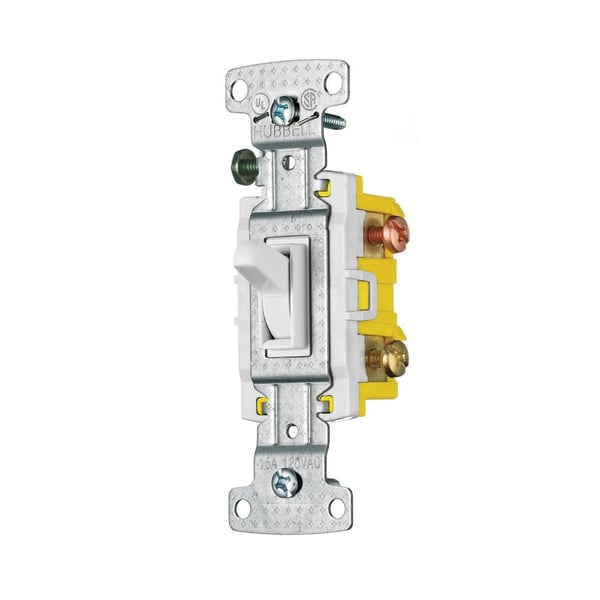

Wiring Device-Kellems tradeSELECT® RS315SW 3-Way 2-Position Compact Residential Grade Self-Grounding Toggle Switch, 120 VAC, 15 A, 1800 W
Wiring Device-Kellems tradeSELECT® RS315SW 3-Way 2-Position Compact Residential Grade Self-Grounding Toggle Switch, 120 VAC, 15 A, 1800 W
SKU: HWSRS315SW
Manufacturer Part Number: RS315SW
UPC: 883778101090
Features
- Hi-visibility yellow base for easy installation
- Elongated strap for easier wall box mounting
- Tough thermoplastic with ultrasonically welded cover and base
- Quiet snap action mechanism
- Multiple drive slot/Phillips/Robertson head screws
Specification
| Material | Thermoplastic |
|---|---|
| Mounting | Threaded |
| Operating Cycles | 10000 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Toggle |
| Amperage Rating | 15 A |
| Catalog ID | HWSRS315SW |
| Color | White |
| Environmental Conditions | -20 to 60 deg C Temperature |
| Power Rating | 1800 W |
| Terminal Type | Push/Side Wired |
| Type | 3-Way 2-Position Compact Residential Grade Self-Grounding |
| Voltage Rating | 120 V |
| Application | Indoor, Home Lighting, Appliances and General Purpose AC Applications |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, CSA Certified, NEMA WD1, UL 20 File No. E3896 |
