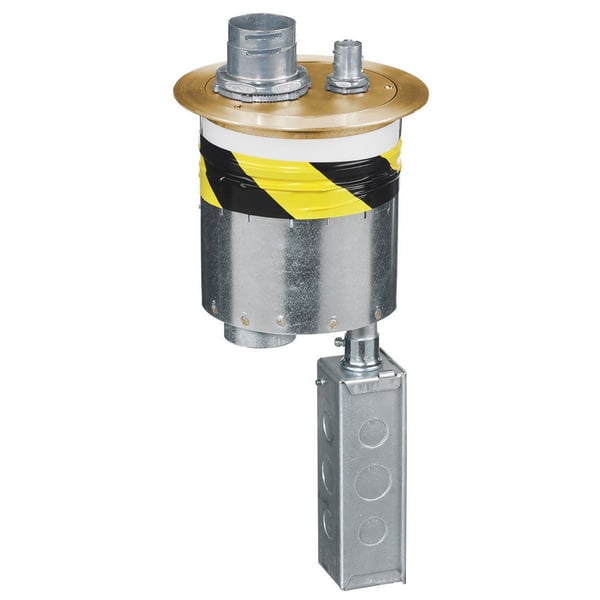

Wiring Device-Kellems SystemOne ScrubShield® S1R6PTFFBRS Recessed Standard Sized Poke-Through Assembled Unit, 6 in Hole, 7.5 in Dia x 0.15 in THK Cover, 60.44 cu-in Capacity, Composite
Wiring Device-Kellems SystemOne ScrubShield® S1R6PTFFBRS Recessed Standard Sized Poke-Through Assembled Unit, 6 in Hole, 7.5 in Dia x 0.15 in THK Cover, 60.44 cu-in Capacity, Composite
SKU: HWDS1R6PTFFBRS
Manufacturer Part Number: S1R6PTFFBRS
UPC: 783585444413
Documents
Features
- Step down installation
- Junction box standard
- Maintains concrete floor fire rating up to two hours
Specification
| Suitable For Use With | In-Floor Delivery Systems and Concrete Floors |
|---|---|
| Type | Recessed Standard Sized |
| Standard & Approvals | ADA Compliant, UL 514A, cULus/ULC Listed |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 60.44 cu-in |
| Catalog ID | HWDS1R6PTFFBRS |
| Cover Material | Die-Cast Aluminum |
| Cover Size | 7.5 in Dia x 0.15 in THK |
| Device Type | Furniture Feed Fire Rated |
| Finish | Brass Plated |
| Hole Size | 6 in |
| Knockout Size | 3/4 in |
| Length | 8.59 in |
| Material | Composite |
| Includes | (1) S1R6PTFIT 6 in Floor Fitting, (1) 6 in Furniture Feed Flange, S1R6FFCVRxx Cover Assembly and (1) 2 in, (1) 3/4 in Conduit Fitting |
