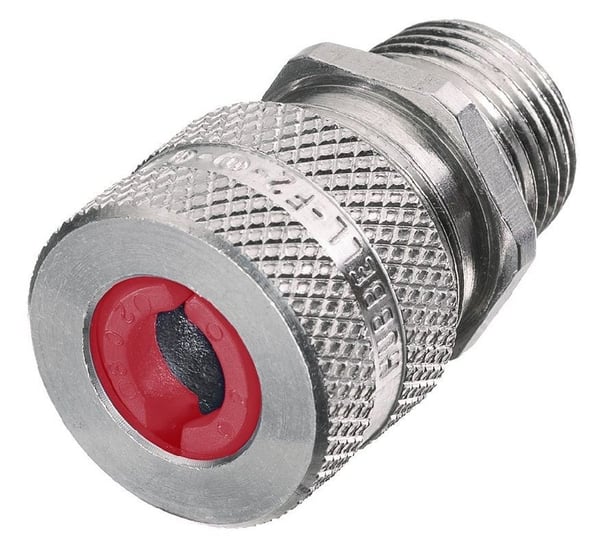

Hubbell, Cord Connector, Straight, Male, 1/2 Inch, Aluminum, 0.31 to 0.38 Inch
Hubbell, Cord Connector, Straight, Male, 1/2 Inch, Aluminum, 0.31 to 0.38 Inch
SKU: HWDSHC1017
Manufacturer Part Number: SHC1017
UPC: 783585200170
Documents
Features
- Hubbell offers a full line of machined aluminum cord connectors in NPT hub sizes 1/4 in through 1 in and cast aluminum 1 in to 3 in
- They provide durable performance and a clean attractive look without adding unwanted weight
- Aluminum cord connector provides durable performance
- Knurled finish makes them easy to handle and maintain UL listing by hand tightening UL listing by hand tightening
- Lightweight design
- F1 form size
- Hubbell nylon cord connectors have a UL 94-V2 rating flammability
- Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 and 2, Class III Div. 1 and 2 N.E.C Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b)
- 0.86 in to 0.91 in (21.8 to 23) recommended knockout hole size
- 0.46 in length thread
- 0.44 in diameter throat
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Openings | 0.31 to 0.38 in |
| Catalog ID | HWDSHC1017 |
| Color | White |
| Connection Type | Straight MNPT |
| Dimensions | 0.88 in OD x 1-29/64 in L |
| Finish | Machined |
| Series | SHC |
| Temperature Rating | -30 to 225 deg F |
| Trade Size | 1/2 in |
| Standard & Approvals | UL 514B Listed, CSA Certified, United States Coast Guard Approval, Title 46-Part 111 |
