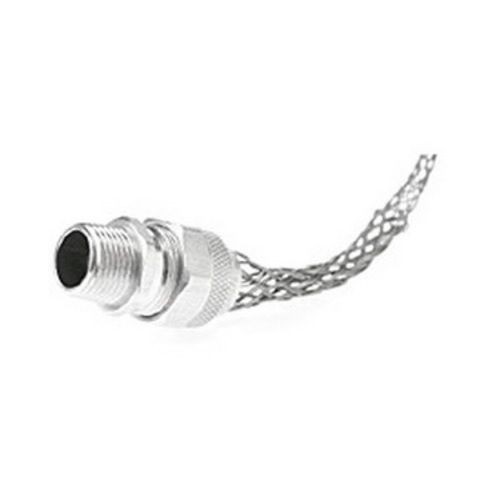

Woodhead® 130097 Strain Relief Deluxe Cord Grip, 1 in Trade, Aluminum

Selected Woodhead® 130097 Strain Relief Deluxe Cord Grip, 1 in Trade, Aluminum
Woodhead® 130097 Strain Relief Deluxe Cord Grip, 1 in Trade, Aluminum

Documents

Short Description

Plugs, connectors, and boxes/enclosures in harsh areas demand strain relief for optimal performance. Woodhead grips reduce arc bend, assist in the load support of a hanging box, and help to prevent pullout. Woodhead offers a solution for both standard and wet-location environments to ensure maximum life. Deluxe cord grips feature an aluminum body integrated with a stainless steel mesh. Non-metallic Max-Loc® grips are available with an O-ring and stainless steel or non-metallic mesh and are suitable for wet locations. Stainless steel Max-Loc fittings and wire mesh assemblies offer the greatest impact and chemical resistance to be applied in food processing, dairy, aerospace and clean room environments.

Features

  • Aluminum/stainless steel material construction performs well to resist corrosion
  • 50% double weave construction improves cable protection and pull-out resistance
  • Robust design good for indoor and outdoor use
  • Stainless steel grip and mesh, aluminum threaded body, compression nut and mesh collar, rubber grommet, zinc-plated steel friction ring
  • NEMA 4 enclosures with gasket placed between fitting and box
  • Half double and half single weave mesh
  • F4 form size
  • For use with 130099-0145 MAX-LOC® 1 in NPT locknut 130099-0151 MAX-LOC® 1 in NPT gasket sealing ring, 130180-0334 MAX-LOC® 1 in NPT o-ring
  • 3/4 to 7/8 in cable diameter

Specification

Material
Aluminum
Series
130097
Trade Size
1 in
Type
Strain Relief
Application
For Electricians, HVAC Contractors, Irrigation Equipment, Panel Builders
Connection Type
Straight MNPT
Standard & Approvals
CSA LR32159, UL E76954
Mesh Length
9-1/4+/-1 in
