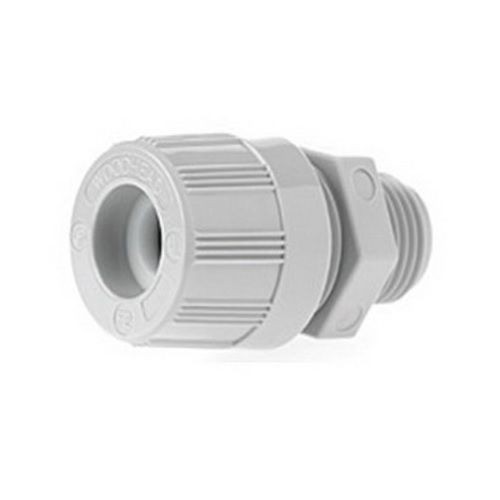

Woodhead® MAX-LOC® 5530 130098 Strain Relief Cord Sealing Grip, 1/2 in Trade, 7/16 to 1/2 in Cable Openings, Nylon

Selected Woodhead® MAX-LOC® 5530 130098 Strain Relief Cord Sealing Grip, 1/2 in Trade, 7/16 to 1/2 in Cable Openings, Nylon
Woodhead® MAX-LOC® 5530 130098 Strain Relief Cord Sealing Grip, 1/2 in Trade, 7/16 to 1/2 in Cable Openings, Nylon

Documents

Short Description

Plugs, connectors, and boxes/enclosures in harsh areas demand strain relief for optimal performance. Woodhead grips reduce arc bend, assist in the load support of a hanging box, and help to prevent pullout. Woodhead offers a solution for both standard and wet-location environments to ensure maximum life. Deluxe cord grips feature an aluminum body integrated with a stainless steel mesh. Non-metallic Max-Loc® grips are available with an O-ring and stainless steel or non-metallic mesh and are suitable for wet locations. Stainless steel Max-Loc fittings and wire mesh assemblies offer the greatest impact and chemical resistance to be applied in food processing, dairy, aerospace and clean room environments.

Features

  • Rugged construction suitable for boxes, cabinets, pushbutton and general use enclosures
  • Nylon body is resistant to impact and corrosion
  • Rubber grommet provides a liquid-tight seal and reduces cord pull-out
  • Grommets are color-coded for easy identification
  • Rubber grommet is best material to resist chemicals and handles a wide temperature range
  • Nylon gray cord grip body compression nut and white washer, rubber grommet, zinc-plated steel nut
  • NEMA 3R enclosure rating
  • 2 compression nut form size
  • Liquid-tight cord seal
  • 1 hole
  • Without o-ring/locknut mesh
  • Use with 130099-0143 1/2 in NPT MAX-LOC® locknut , 130180-0314 MAX-LOC® 1/2 in NPT o-ring, 130099-0149 MAX-LOC® 1/2 in NPT gasket

Specification

Material
Nylon
Minimum Order Qty
1
Order Interval
1
Cable Openings
7/16 to 1/2 in
Catalog ID
WOO5530
Color
Orange
Connection Type
Straight MNPT
Series
130098
Trade Size
1/2 in
Type
Strain Relief
Application
Electricians, HVAC Contractors, Irrigation Equipment and Panel Builders
Standard & Approvals
CSA LR32159, UL E76954
