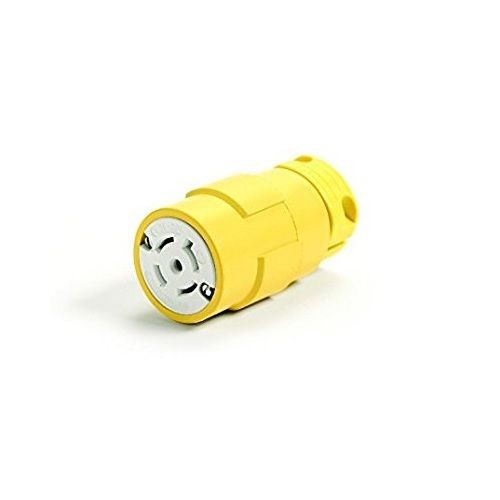

Woodhead® 2982 130142 Female Connector With Locking Blade, 480 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Woodhead® 2982 130142 Female Connector With Locking Blade, 480 VAC, 30 A, 4 Poles, 5 Wires, Yellow
SKU: WOO2982
Manufacturer Part Number: 130142-0048
UPC: 786788705404
Documents
Features
- Neotex® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
- Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Two piece strain relief seals cord without damaging the cord
- Single receptacle
- Stainless steel face screws
- Brass wire saddle clamp
- 0.425 to 1.15 in connector
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Specification
| Grade | Industrial |
|---|---|
| Material | Rubber |
| NEMA Rating | NEMA L22-30 |
| Number Of Poles | 4 |
| Number of Wires | 5 |
| Series | 130142 |
| Temperature Rating | -40 to 75 deg C |
| Voltage Rating | 480 VAC |
| Standard & Approvals | CSA LR6837, RoHS Compliant, UL E10176 |
| Amperage Rating | 30 A |
| Color | Yellow |
