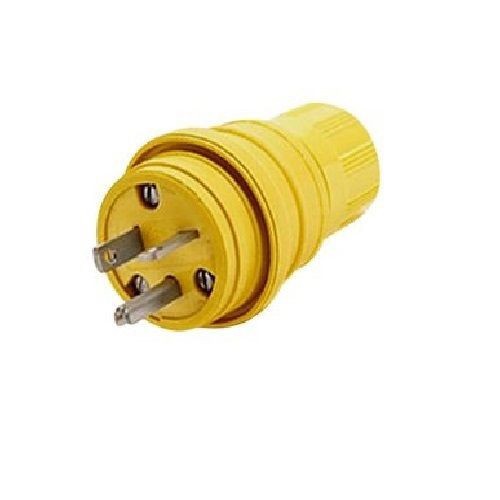

Woodhead® Watertite® Extreme 14W47 130146 Male Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Selected Woodhead® Watertite® Extreme 14W47 130146 Male Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Woodhead® Watertite® Extreme 14W47 130146 Male Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow

Documents

Short Description

Woodhead Watertight wet-location wiring devices are rated for high-pressure hose-down application up to 1,000 psi, the benchmark for the industry. The only devices made of NEo-TEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide high pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertight products are time-tested devices that professionals demand.

Features

  • Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down up to 1000 psi
  • Color-coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
  • Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain relief seals cord without damaging the cord
  • F2 body, 1/2 in cord grip
  • Nickel plated brass plug blades and connector contacts
  • NEo-TEX® paracril OZO rubber outer housing and grommet
  • Stainless steel face screws
  • Nylon face insert
  • Brass wire saddle clamp
  • Lexan receptacle cover plate and closure caps
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%

Specification

Material
Rubber
NEMA Rating
NEMA 5-15
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Catalog ID
WOO14W47
Color
Yellow
Enclosure
IP67
Series
130146
Temperature Rating
-40 to 75 deg C
Terminal Type
Wire Screw
Voltage Rating
125 VAC
Standard & Approvals
CSA Certified, UL Listed
Application
For Breweries, Dairies, Food and Beverage, Wastewater Treatment and Water Treatment, Wet Location
