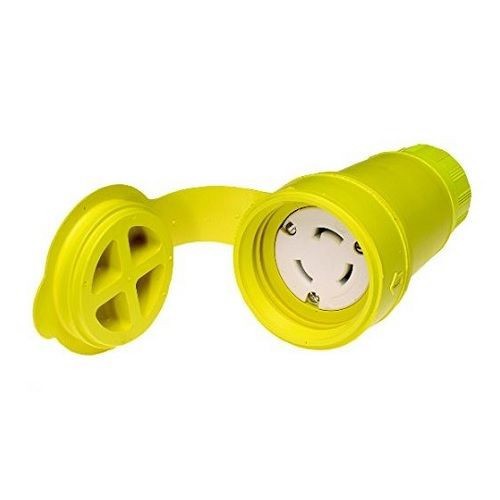

Woodhead® Watertite® 29W08 130147 Female Connector With Locking Blade, 250 VAC, 30 A, 3 Poles, 3 Wires, Yellow
Woodhead® Watertite® 29W08 130147 Female Connector With Locking Blade, 250 VAC, 30 A, 3 Poles, 3 Wires, Yellow
SKU: WOO29W08
Manufacturer Part Number: 130147-0089
UPC: 786788713928
Documents
Features
- Single receptacle
- F4 1 in cord grip body
- Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Non-NEMA configuration
Specification
| Number Of Poles | 3 |
|---|---|
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Color | Yellow |
| Enclosure | IP67 |
| Series | 130147 |
| Voltage Rating | 250 VAC |
| Catalog ID | WOO29W08 |
| Standard & Approvals | CSA LR6837, RoHS Compliant, UL E10176 |
