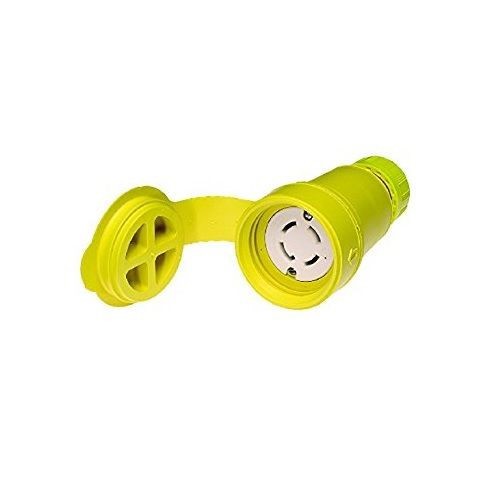

Woodhead® Watertite® 29W09 130147 Female Connector With Locking Blade, 250 VAC, 30 A, 4 Poles, 4 Wires, Yellow
Woodhead® Watertite® 29W09 130147 Female Connector With Locking Blade, 250 VAC, 30 A, 4 Poles, 4 Wires, Yellow
SKU: WOO29W09
Manufacturer Part Number: 130147-0091
UPC: 786788713935
Documents
Features
- Single receptacle
- F4 1 in cord grip body
- Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
- Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Non-NEMA configuration
Specification
| Number Of Poles | 4 |
|---|---|
| Number of Wires | 4 |
| Series | 130147 |
| Voltage Rating | 250 VAC |
| Standard & Approvals | CSA LR6837, RoHS Compliant, UL E10176 |
| Amperage Rating | 30 A |
| Color | Yellow |
| Enclosure | IP67 |
