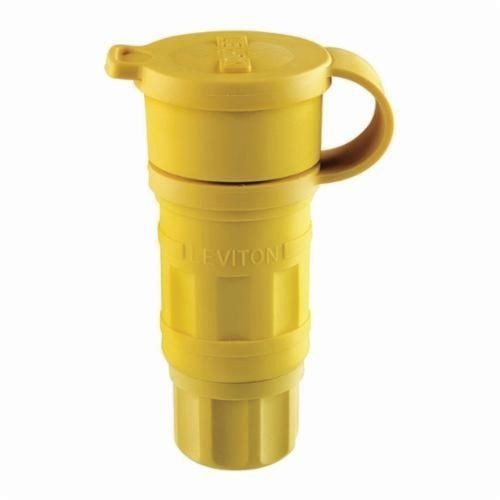

Woodhead® Watertite® Extreme 15W47 130146 Female Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Woodhead® Watertite® Extreme 15W47 130146 Female Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
SKU: WOO15W47
Manufacturer Part Number: 15W47
UPC: 786788711023
Features
- Multiple seal plug/connector interface keeps out contaminants; resists vapor and water from high pressure wash down up to 1000psi
- Color-coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
Specification
| Grade | Industrial |
|---|---|
| NEMA Rating | NEMA 5-15 |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | Yellow |
| Voltage Rating | 125 VAC |
| Standard & Approvals | UL Listed |
| Material | Ethylene Propylene Thermoplastic Rubber |
| Series | Watertite® |
| Cord Diameter | 0.234 to 0.687 |
| Catalog ID | WOO15W47 |
