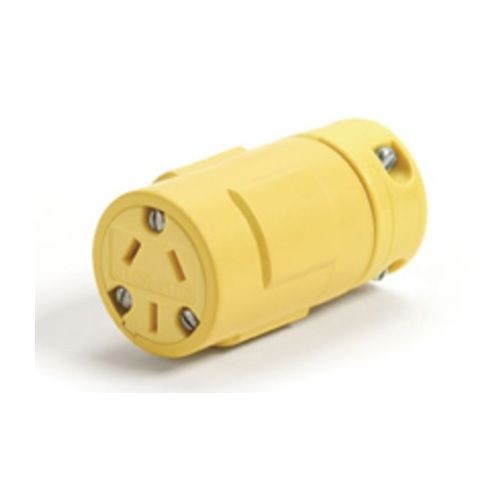

Woodhead® Super-Safeway® 2507 130141 Female Heavy Duty Locking Blade Connector, 250 VAC, 15 A, 3 Poles, 3 Wires, Yellow
Woodhead® Super-Safeway® 2507 130141 Female Heavy Duty Locking Blade Connector, 250 VAC, 15 A, 3 Poles, 3 Wires, Yellow
SKU: WOO2507
Manufacturer Part Number: 2507
UPC: 786788705800
Short Description
Features
- NEo-TEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
- Rugged nylon bodies within the Safeway™ offering provide exceptional durability and performance
- 15 A at 125 VAC, 10 A at 250 VAC
- Without flip coverplate
Specification
| Grade | Industrial |
|---|---|
| Material | NEoTEX Paracril OZO Rubber |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | WOO2507 |
| Color | Yellow |
| Cord Diameter | 0.325 to 0.84 |
| Dimensions | 1.66 in Dia x 2.99 in L |
| Series | 130141 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Female Heavy Duty |
| Voltage Rating | 250 VAC |
| Application | Aircraft Construction, Airports, Construction Site, Facility Maintenance, Petrochemical, Pulp and Paper Manufacturing Applications |
