3M Splicing & Termination Questions & Answers
What is the goal of proper cable splicing and termination?
The goal is to restore the cable to its original performance level—electrically, mechanically, and environmentally.
A proper splice or termination must:
- Recreate insulation
- Restore shielding
- Seal against moisture
- Maintain electrical stress control
If done incorrectly, it can lead to premature cable failure.
What are the key steps in a 3M cable splice?
3M defines a structured process:
- Cable preparation (cleaning, stripping layers)
- Connector installation (joining conductors)
- Re-insulation
- Re-shielding
- Re-jacketing (environmental seal)
Every step is critical—missing one compromises the entire system.
What makes 3M splicing systems reliable?
Electrical stress occurs where the cable shield ends (especially at terminations).
3M solutions use:
- Geometric stress control (stress cones)
- Capacitive stress control (advanced materials)
Without proper stress control:
- Partial discharge occurs
- Insulation breaks down
- Failure happens prematurely

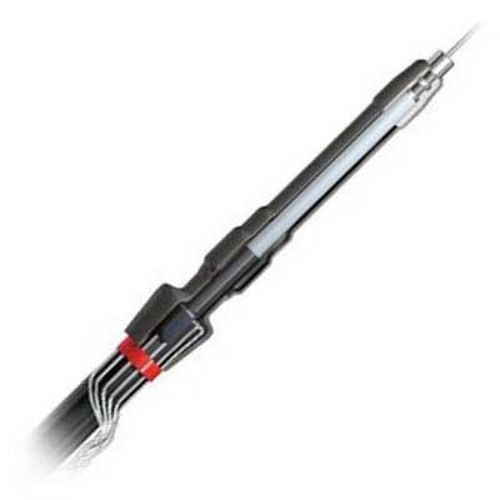

What is 3M Cold Shrink technology?
Cold shrink is a pre-expanded rubber tube that shrinks onto the cable when a core is removed.
Key benefits:
- No heat or flame required
- Faster installation (up to 1/3 the time)
- Consistent, error-resistant installation
- Works in tight or hazardous environments
Why is cold shrink often preferred over heat shrink?
Cold Shrink Advantages:
- No tools, torches, or permits
- Safer (no hot work)
- Faster install
- “Living seal” expands/contracts with cable load
- Lower failure rates over time

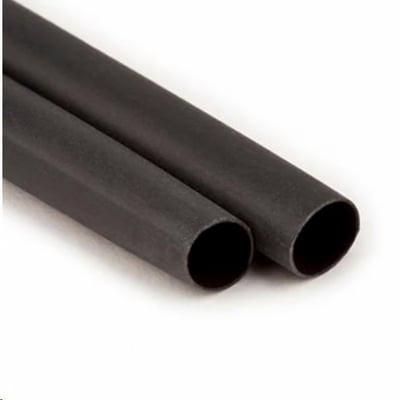

Heat Shrink Challenges:
- Requires heat source
- Installation quality depends on installer skill
- Static seal can lead to voids and failure over time
What is inside a typical 3M splice or termination kit?
Kits are engineered systems and may include:
- Cold shrink tubes or bodies
- Connectors or compatibility components
- Mastic sealing materials

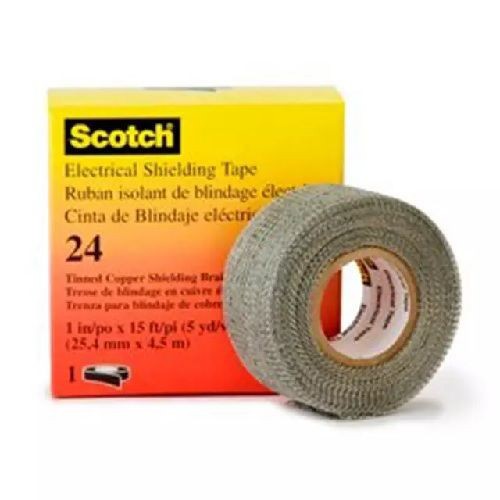

- Shielding tapes
- Grounding components
- Cable prep kits
What causes most cable failures in splicing/termination?
3M highlights common causes:
- Improper cable preparation
- Contamination (dirt/moisture)
- Poor stress control
- Incorrect installation technique
That’s why 3M emphasizes training + simplified installation systems.
